| Brand Name : | Crystro |
| Model Number : | CR210330-01 |
| Certification : | SGS/ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 1000pcs/month |
| Delivery Time : | 3-4 weeks |

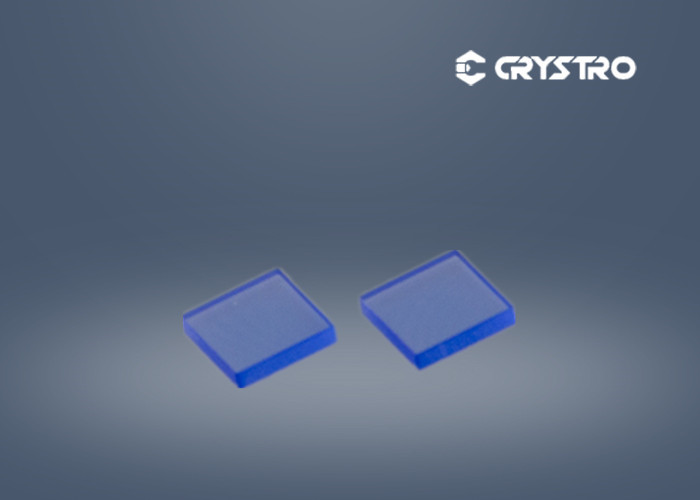

Co Spinel Passive Q-switching in lasers emitting from 1.2 to 1.6 um
Introduction:
Co2+:MgAl2O4 (or Co:Spinel) is a relatively new material for saturable absorber passive Q-switching in lasers emitting from 1.2 to 1.6 microns, in particular, for eye-safe 1.54 μm Er:glass laser.High absorption cross section of 3.5 x 10-19 cm2 permits Q-switching of Er:glass laser.
Anhui Crystro keep developing and reseaching,Co Spinel is new developed crystal.
High absorption cross section of 3.5 x 10-19 cm2 permits Q-switching of Er:glass laser without intracavity focusing both with flash lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10. Finally, excellent optical, mechanical, and thermal properties of the crystal give an opportunity to design compact and reliable laser sources with this passive Q-switch.
Features:
| Absorption Cross-Section, cm^2 | 3,5x10-19 @ 1540 nm |
| AR Coating Reflectivity, % | ≤0,2% @ 1540 nm |
| Dimension Tolerances, mm | +0.0 mm/-0.2 mm |
| Parallelism Error, arcsec | ≤ 10 arcsec |
| Perpendicularity, arcmin | ≤ 10 arcmin |
| Protective chamfers | <0.1 mm @ 45deg |
| Surface Quality, S-D | 10 - 5 scratch & dig |
| Wavefront Distortion | ≤λ/10 @ 632.8 nm |
| Wavelength Range, nm | 1200-1600 |
